Automatic C Purlin Roll Forming Machine Automatic C Purlin Forming Machine can easily change the size in one minute. More
Semi-automatic C Purlin Roll Forming Machine Semi-automatic C purlin machine can change the size in ten minutes which will save your time and easy to operate. More

Cable Tray Making Machine

High Quality Galvanized Punched Cable Tray Making Machine

item no.:
YX21/41-41
Payment:
FOB inference
product origin:
China
Color:
Glay+Blue
shipping port:
Xiamen Port
Lead Time：
0-60Days

Product Detail

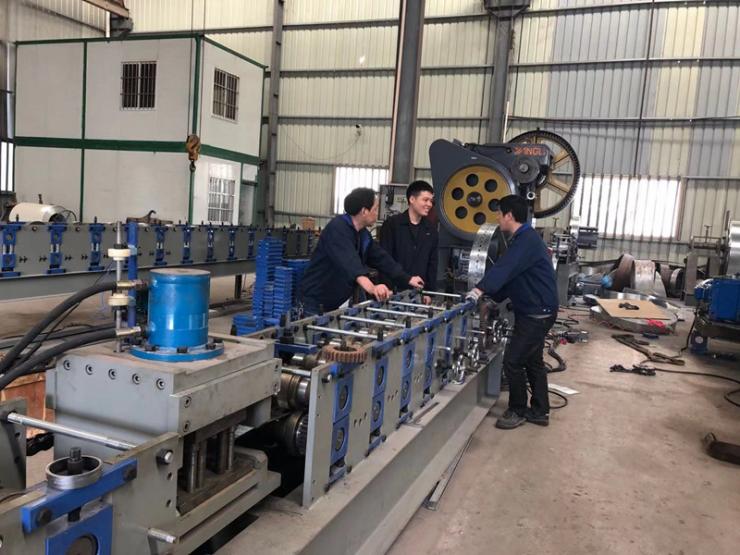

Full Automatic Change Cable Tray Roll Forming Machine

Taiwai Quality With Chinese Price

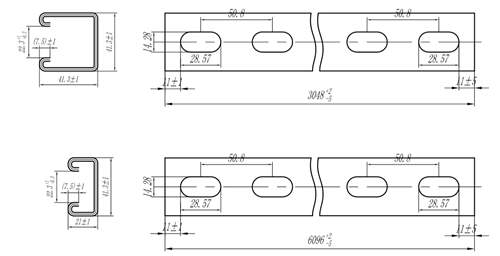

Profile Drawing

Main Technical Parameters

Technical Parameter	Description
Material Thickness	2.0-2.7mm
Material Width	136/96mm
Effective Width	42/21mm
Forming Station	24 steps
Motor power	18.5Kw
Weight	12000KG

Machine Parts

1. Leveling and Servo Feeding Device

Servo Motor: 2.2KW

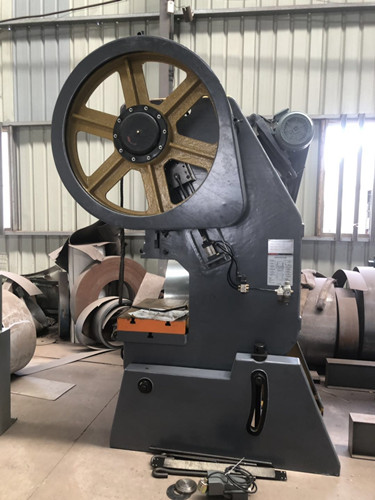

2. 63T Punching Set

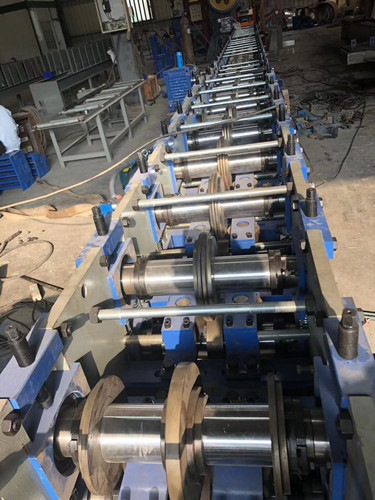

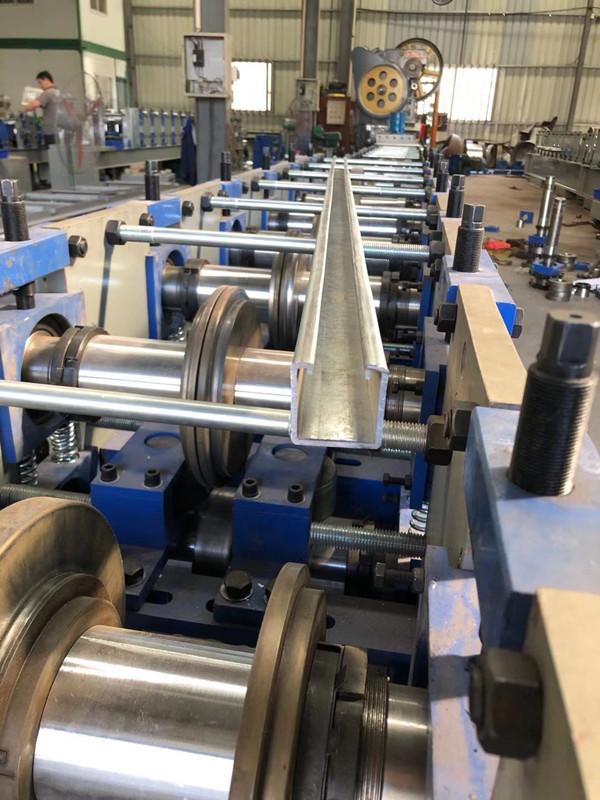

3. Cold Rolling Mill

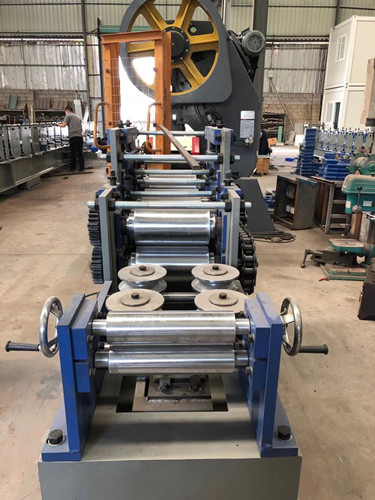

This part of machine also with feeding material guide and leveling device, and machine body made by H400 steel by welding.

Wallboard thickness is 25mm.

Rollers manufacturered from CR12, precision machined, hard chrome coated, with leaning wheel

Shafts manufactureed from 45#, solid shaft diameter=75mm, quenching and tempering treated

Motor driving, chain spocket transmission, 24 staps to form

4. Hydraulic cutting device

Hydraulic cutting device with two blades

Hydraulic pressure range: 0-16Mpa

Hydraulic motor: 5.5KW

Cutting tool material: Cr12, heat treatment

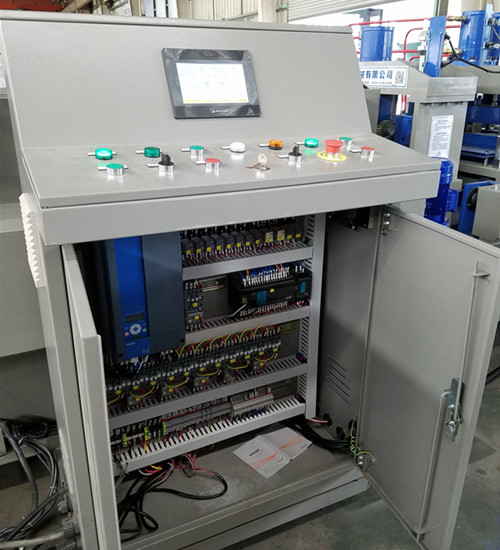

5. PLC Control System

This PLC system can control the quantity and cutting length qutomatically,

The opetator inputs the data (production batch, pcs, length, etc.) on the touch screen, it can finish the production automatically.

Combined with: PLC, Inverter, Touch Screen, Encoder, Closed-loop Control, etc.

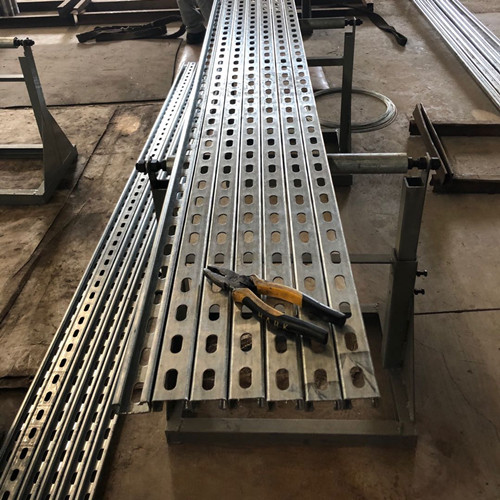

6.Finished Products
