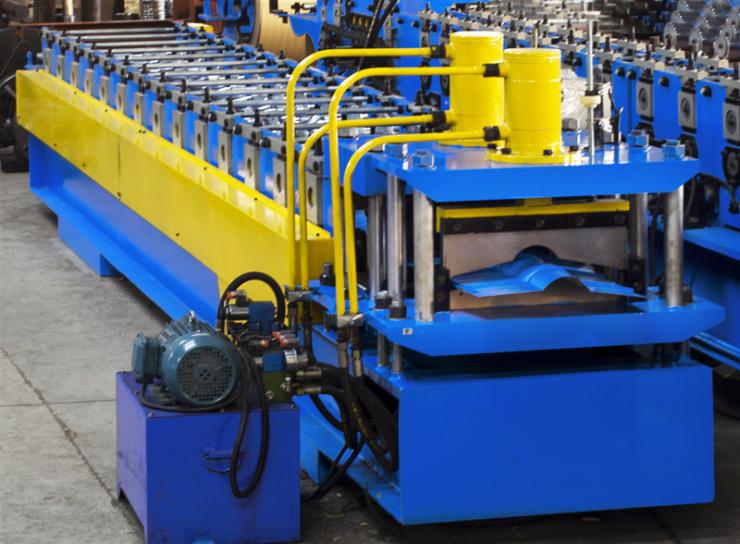

Roof panel ridge cap is widely use in the roof panels and accessories section. Find quality metal roof ridge cap roll forming machine, you can connect us.
item no.:
YX65-449Payment:
FOB Inferenceproduct origin:
ChinaColor:
Glay+Blueshipping port:
Xiamen PortLead Time：
0-60DaysQUALITY Metal Ridge Cap Roll Forming Machine with GOOD AFTER-SALES SERVICE

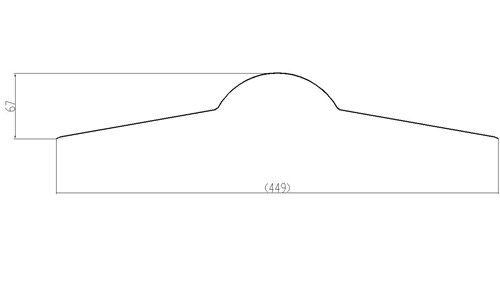

Profile Drawing
Main Techinical Parameters
|
Technical Parameter |
Description |
|
Material Thickness |
0.3-0.6mm |
|
Material Width |
481mm |
|
Effective Width |
449mm |
|
Forming Station |
14 steps |
|
Motor power |
5.5Kw |
|
Weight |
6000KG |
Applicable Material: GI or PPGI with yield strength of 240-550MPA
Machine Components

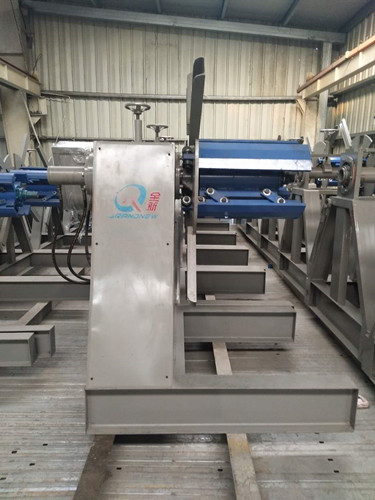

1. One manual decoiler
Unpower, manual control still coil inner bore shrinkage and stop
2. Cold Rolling Mill
Body Frame made from H350 steel by welding;
Rollers manufactured from GCR15, CNC lathes;
Shafts manufactured from 45# steel, quenching and tempering treated
Motor driving, main motor=5.5KW
3. PLC Control Device
PLC control device can control the product quantity and product length automatically.
Operators input the date (production batch, pcs, length, etc) on the touch screen. It can finish the production automatically.
This PLC control device combined with PLC, Inverter, Touch Screen, Encoder, Closed-loop control, etc.

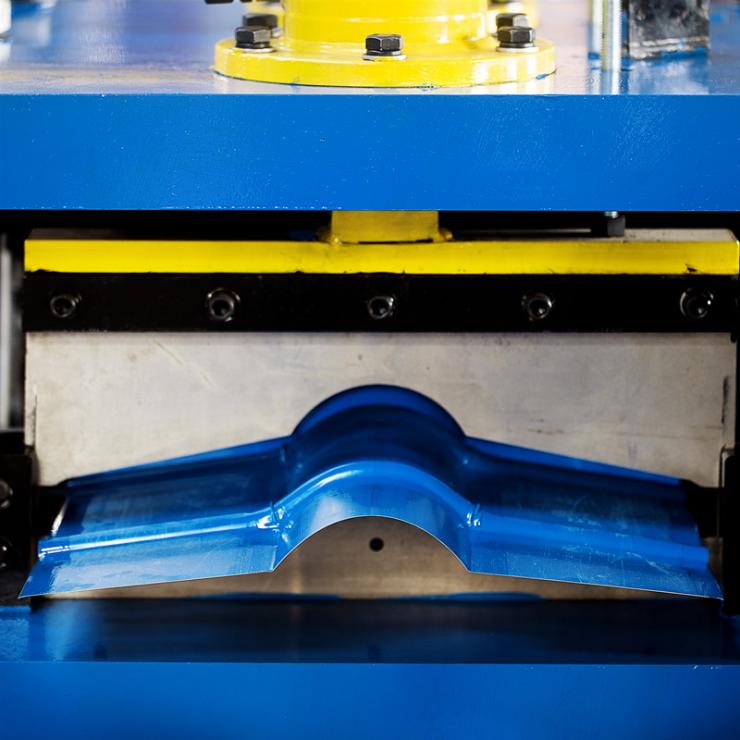

4. Hydraulic Cutting Device
One press mould+one cutting mould
Hydraulic power: 3.0KW
Cutting tool material: CR12, heat treatment

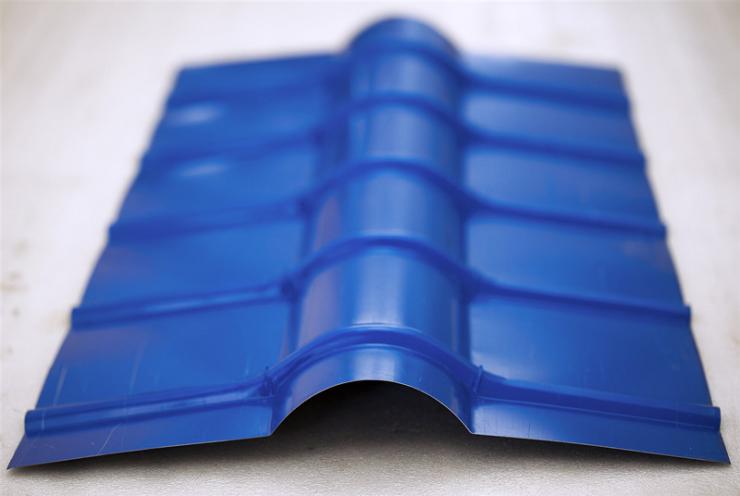

5. Finished Product
