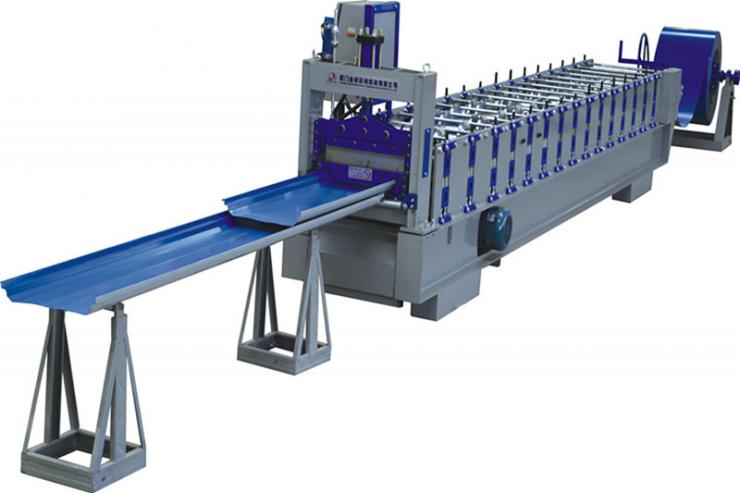

The colored steel tiles produced by this joint hidden type panel forming machine look beautiful, elegant and noble.
item no.:
YX71-478Payment:
FOB Referenceproduct origin:
ChinaColor:
Glay White+Blueshipping port:
Xiamen PortLead Time：
30 Days

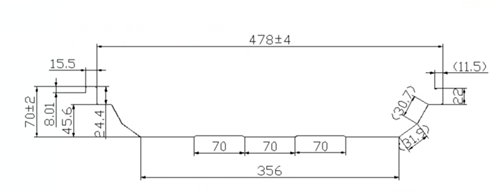

Profile drawing
Main Technical Parameters:
|
Technical Parameter |
Description |
|
Material Thickness |
0.4-1.0mm |
|
Material Width |
600mm |
|
Effective Width |
478mm |
|
Forming Station |
18 steps |
|
Motor power |
11 Kw |
|
Weight |
5500KG |
Machine parts
1.Roof panel machine pre-cutter
Pre-cutter with feeding material guide can leveling the material and avoid wasting material.

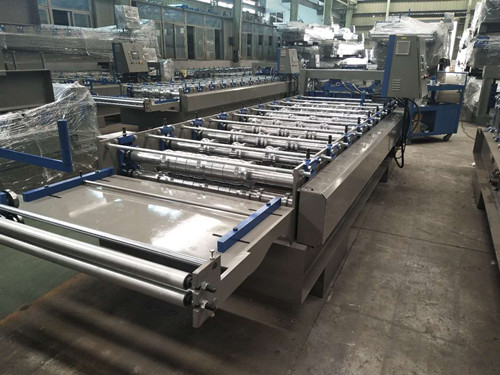

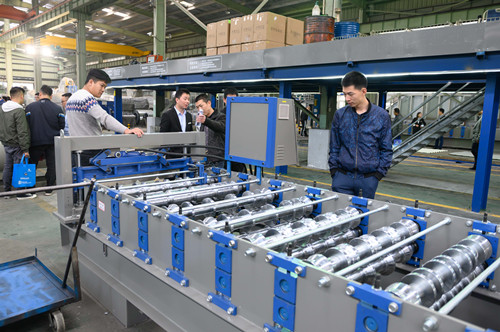

2.Roof panel machine rollers
Rollers manufactured from high quality 45# steel, CNC lathes, heat treatment.
And black treatment or hard-chrome coating is for your options.
The body of the machine is made from H400#type steel by welding.

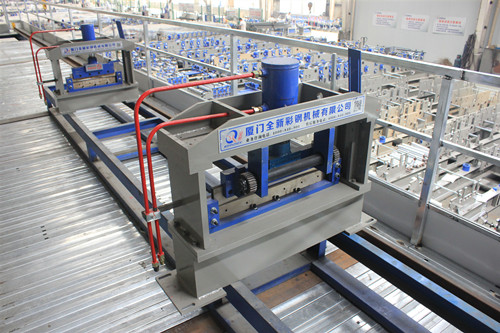

3.Roof panel machine post cutter
Made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
Hydraulic motor: 3.0KW
Hydraulic pressure range: 1-16Mpa

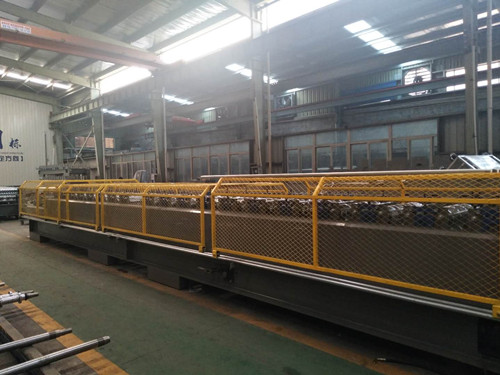

4.Roof panel machine protection cover

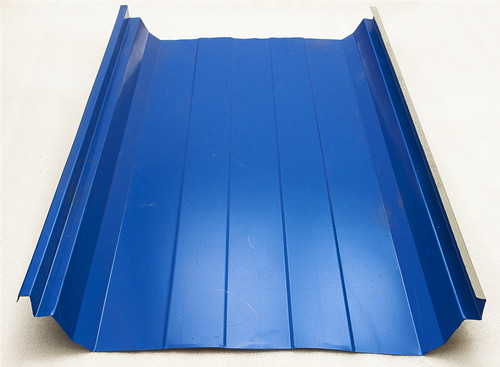

5.Product show

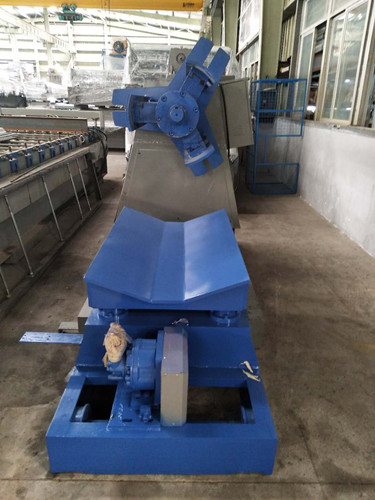

6.Uncoiler
One set of manual undoiler
Manually control steel coil inner bore shrinkage and stop, Un-powered
Max.feeding width: 1200mm, coil id range 508mm±3
With hydraulic uncoiler for option

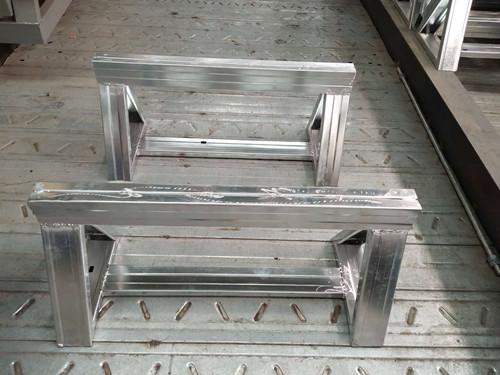

7.Exit rack
Un-powered, three units
