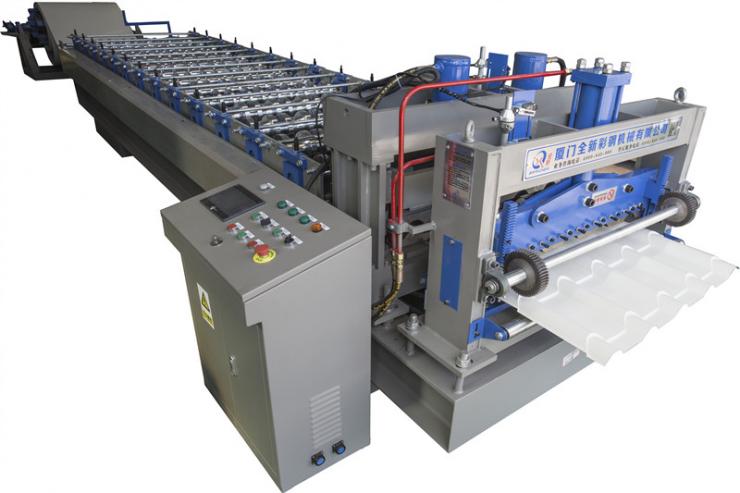

Glazed tile is widely used in house roof because of its beautiful appearance, high efficiency, reasonable price, unmatched quality and reliability.
item no.:
YX26.5-160-800Payment:
FOB Referenceproduct origin:
ChinaColor:
Glay White+Blueshipping port:
Xiamen PortLead Time：
45 Days
All parameters are just for your reference. We offer customized size.

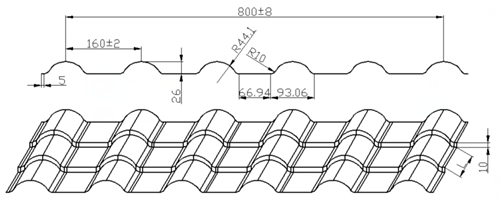

Profile drawing
Main Technical Parameters:
|
Technical Parameter |
Description |
|
Material Thickness |
0.45-0.8mm |
|
Material Width |
1000mm |
|
Effective Width |
800mm |
|
Forming Station |
13 steps |
|
Motor power |
5.5 Kw |
|
Weight |
7500KG |
Machine parts

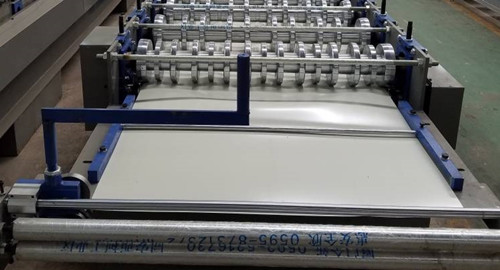

1.Roof panel machine pre-cutter
With feeding material guide, avoid wasting material

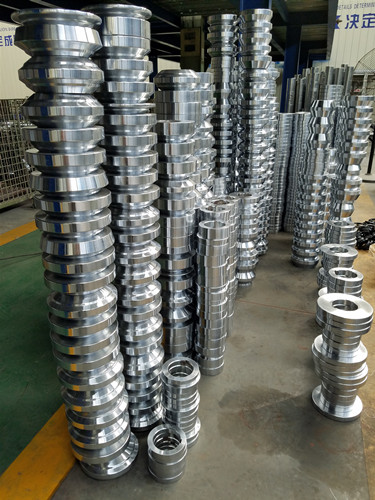

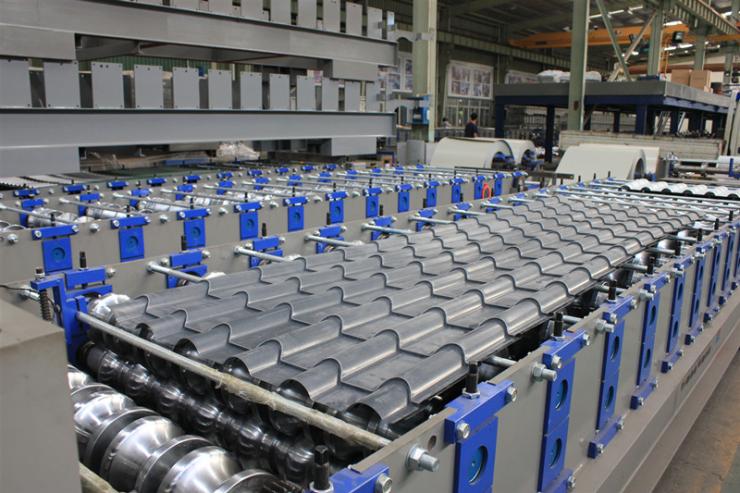

2.roof panel machine rollers
Rollers manufactured from high quality 45# steel, CNC lathes, heat treatment.
With black treatment or hard-chrome coating for options
Body frame made from 350#Htype steel by welding.

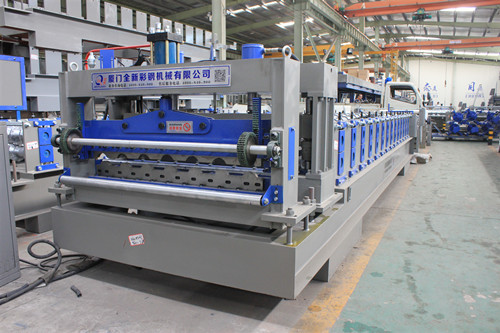

3.Roof panel machine post cutter
Our post cutter made by high quality mold steel Cr12 with heat treatment
Its frame made from high quality 20mm steel plate by welding
Hydraulic motor: 5.5KW
Hydraulic pressure range: 1-16Mpa
4.roof panel machine protection cover

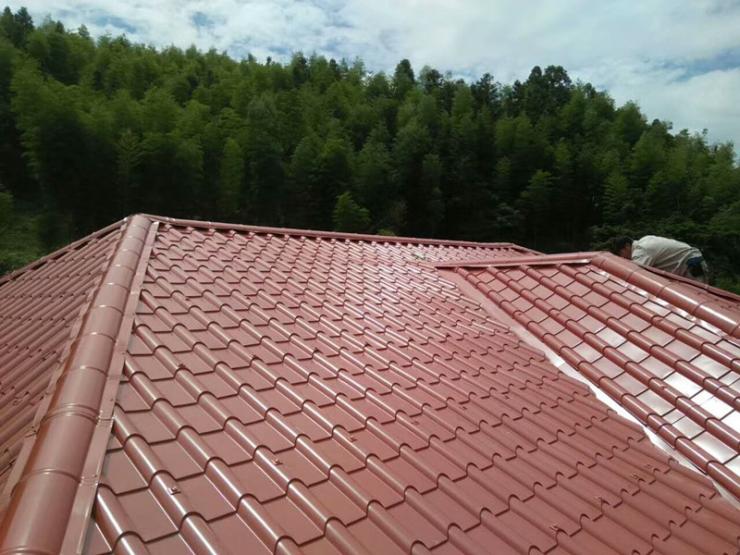

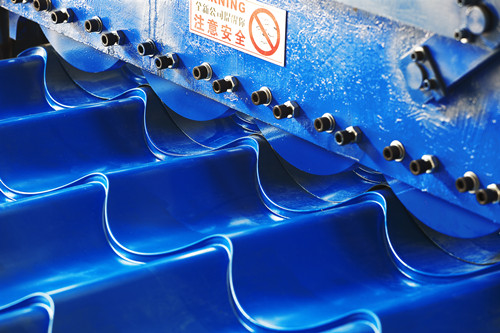

5.product show

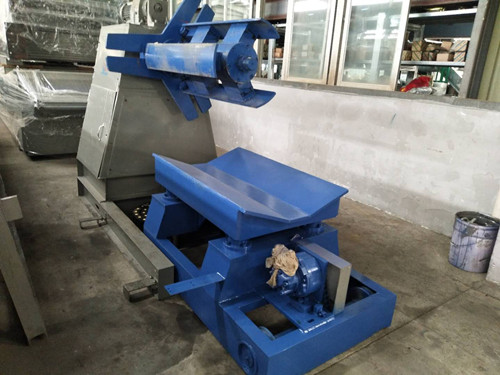

6.Uncoiler
Manual dedoiler: 1 set
Un-powered, manually control steel coil inner bore shrinkage and stop
Max.feending width: 1200mm, coil id range 508mm±30
With hydraulic uncoiler for option

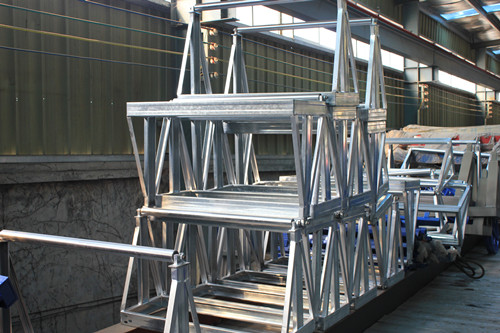

7.Exit rack
Un-powered, three units
