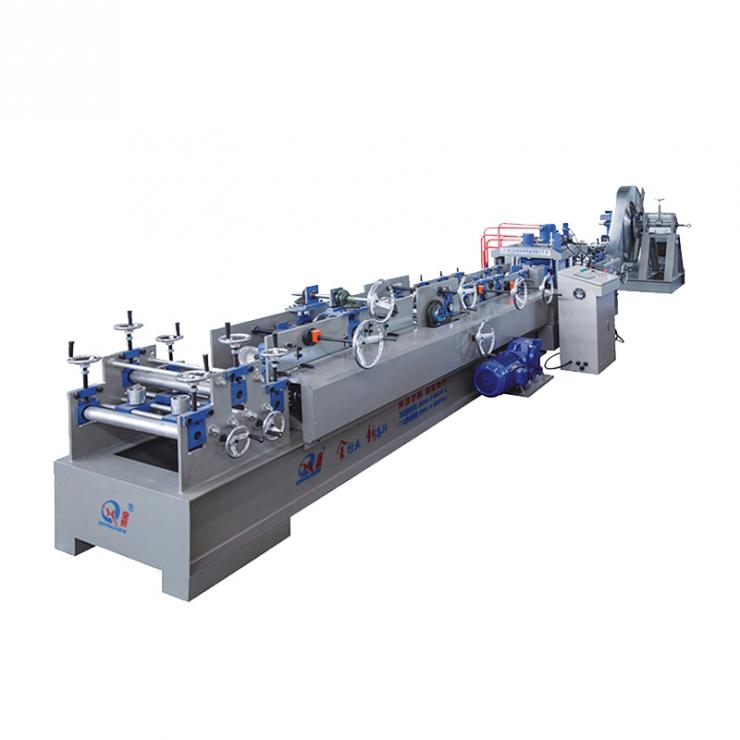

Fully Automatic C Purlin Roll Forming Machine

We are the first and only factory to have a whole Baking Finishing Line to treat the spare parts.

Product Specification

Main Parts

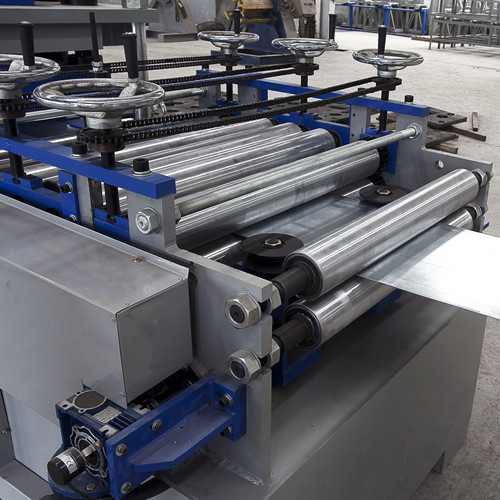

1. Feeding material guide and leveling device
Two rollers (one up and one down roller) for material guide and 5 rollers ( 2 up and 3 down rollers ) for straightening.

solid and shafts diameter=φ95mm

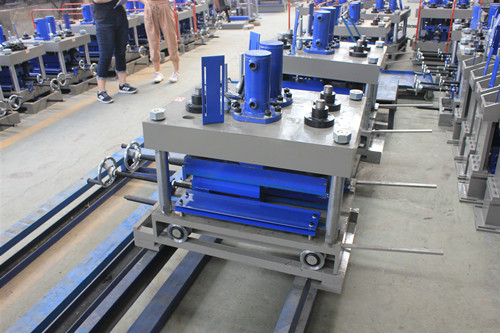

2. Pre-punching system
Two set of punching device of three cylinders (one cylinder for single hole and 2 cylinders for dual-holes.)
Also, can make three or more punching sets as customer’s requires.

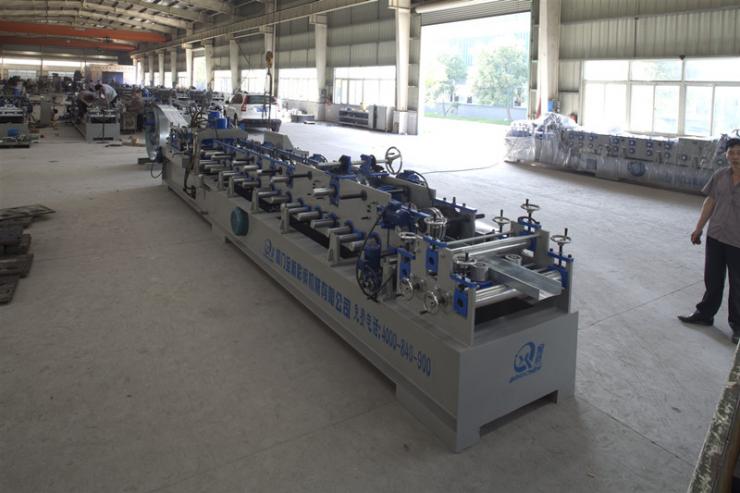

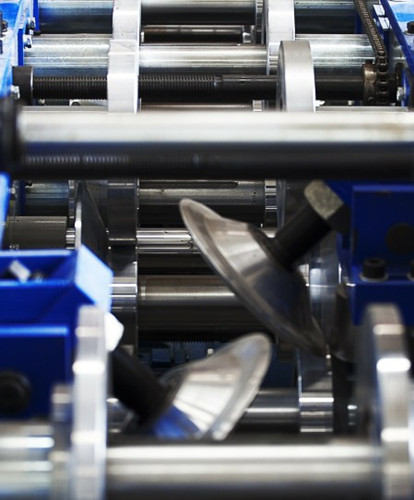

3. C purlin machine rollers and shafts
Rollers are made of bearing steel GCr15, precision machined, hard Chrome Coated;

Leaning rollers are made by Cr12;
Shafts manufactured from #45 steel or Gcr15 for optional, Main Shaft Diameter=φ80/65mm, quenching and tempering treated

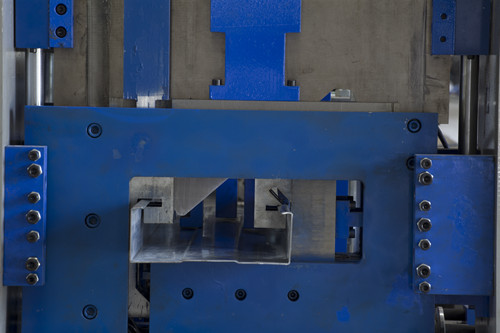

4. C purlin machine post-cutting system:
No need to change cutter for different size;

Unlimited specification changing for height and bottom width;
Cutting blades made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 30mm steel plate by welding

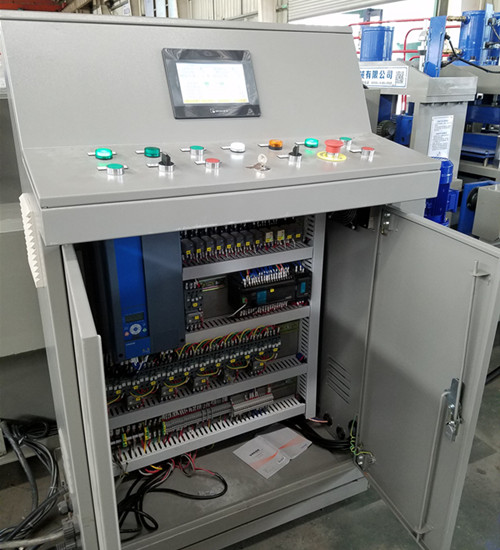

5.Control System
C purlin machine control box
(Touch screen brand: WEINVIEW, Inverter brand: Finland VOCAN/Taiwan DELTA/ALPHA,  Encoder brand: Japan Koyo/OMRON)

6.Uncoiler

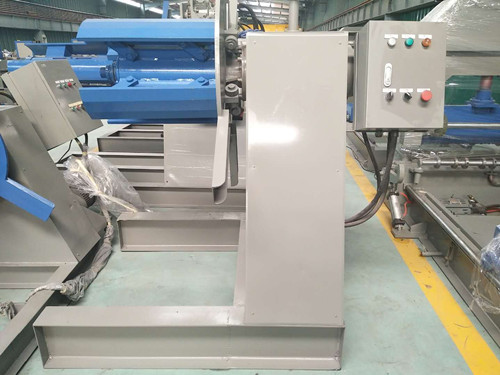

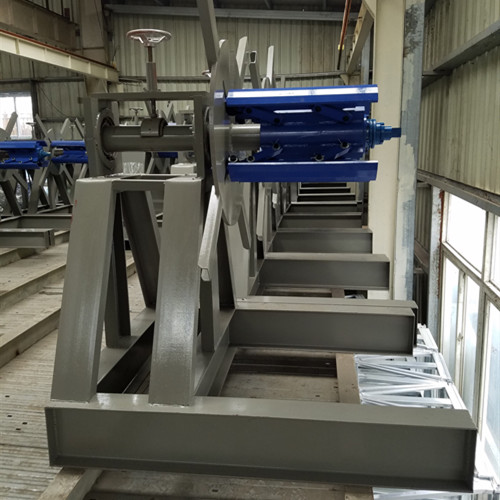

C purlin machine uncoiler
One set manual uncoiler, Un-powered, manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 3Ton

We also have hydra uncoiler for option

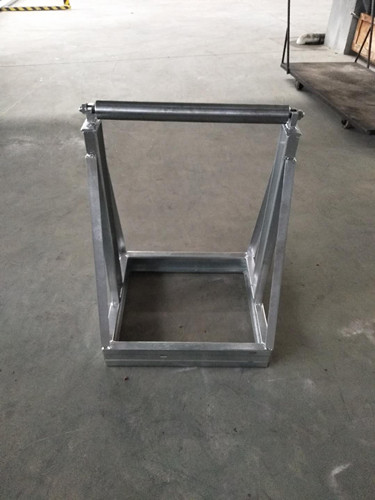

7. C purlin exit rack
 Un-powered, three  units
