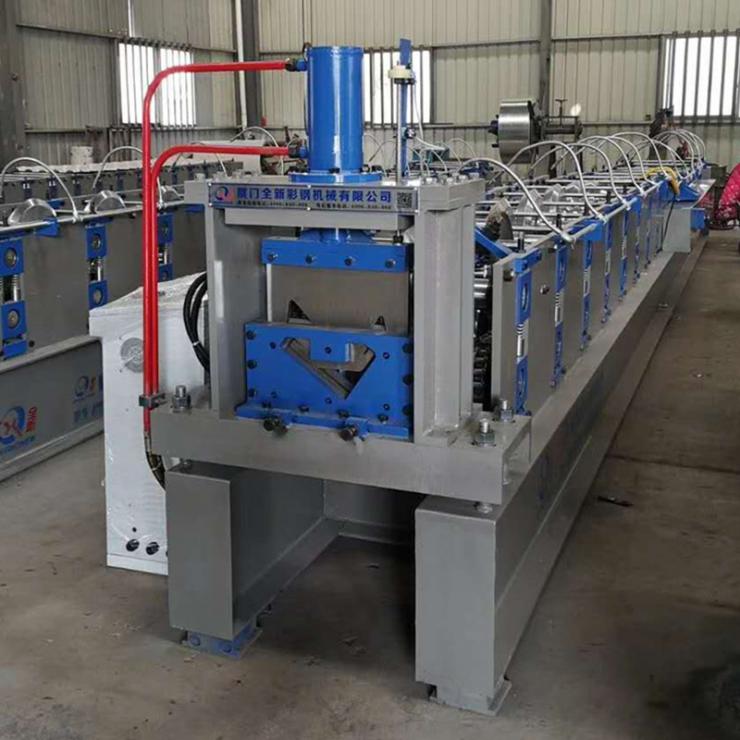

Top Beam Roll Forming Machine

Container house is movable, reusable, modular building house. Now it is highly recognized by the market.

  • item no.:

    Top Beam
  • Payment:

    FOB Reference
  • price range:50000 - 53000/$1
  • product origin:

    China
  • Color:

    Glay White+Blue
  • shipping port:

    Xiamen Port
  • Lead Time:

    60 Days
Product Detail

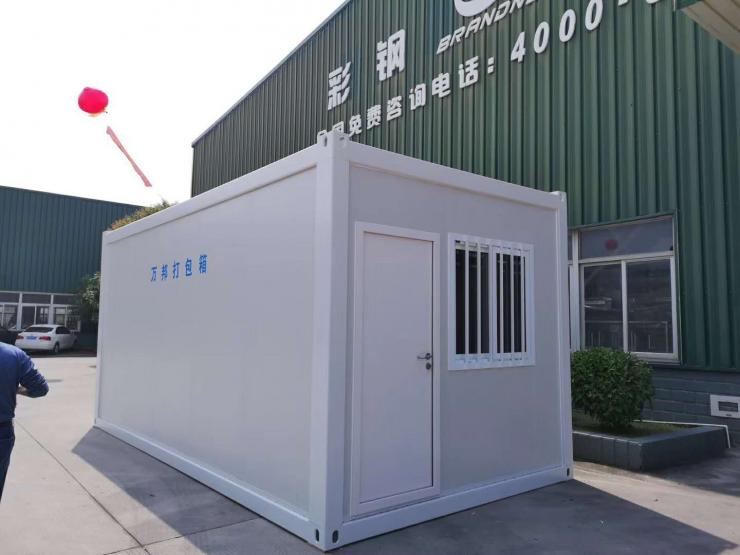

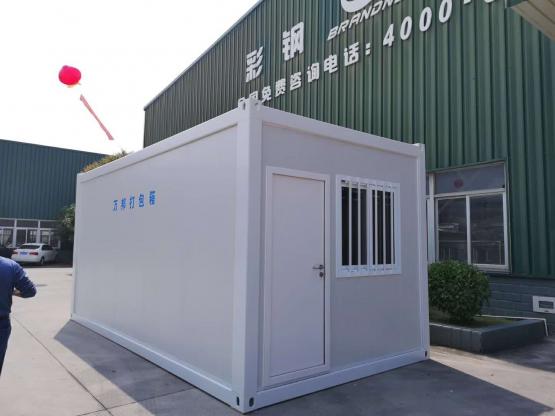

Movable, Reusable, Modular building house

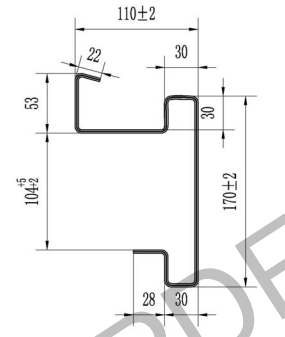

Profile drawing


Machine Parts

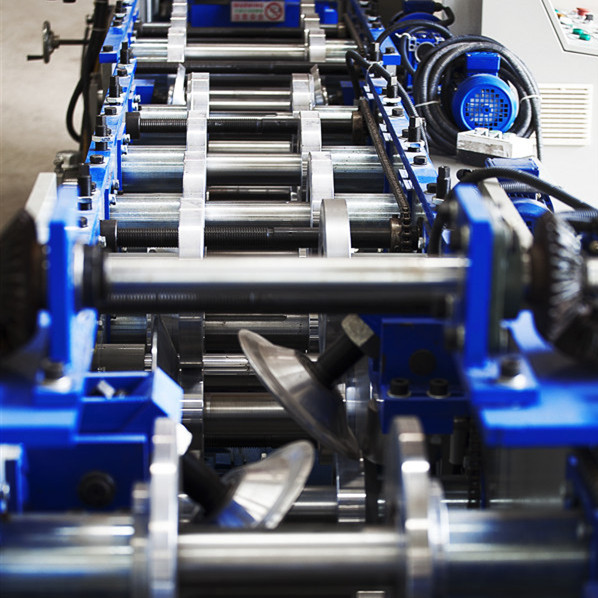

1. Machine roller

Rollers are made by high quality GCR15 steel, heat treatment.
Body frame made from 450#H type steel by welding.

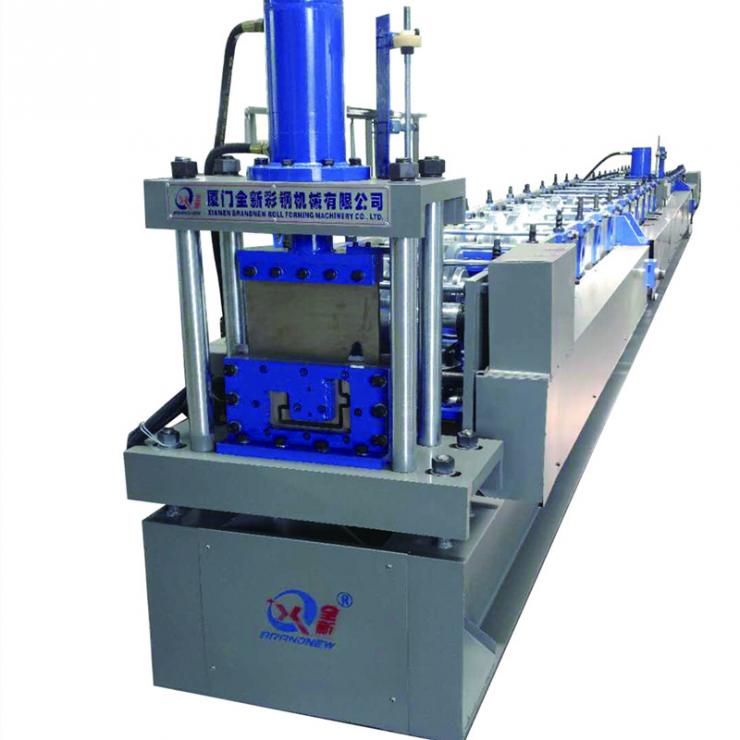

2. Machine post cutter

Made by high quality mold steel Cr12 with heat treatment
Hydraulic motor: 5.5KW
Hydraulic pressure range: 1-16Mpa

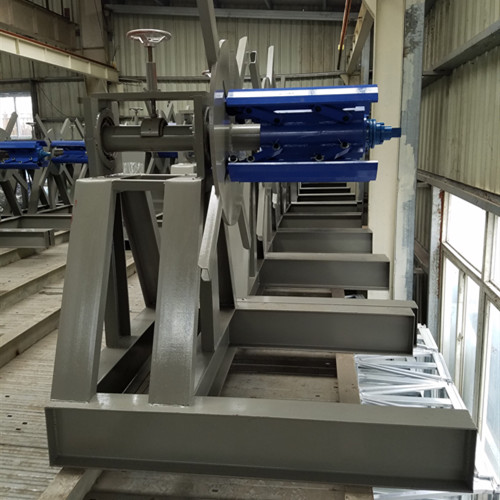

3. Uncoiler

Manual undoiler: 1 set
Un-powered, manually control steel coil inner bore shrinkage and stop
Max.feending width: 1200mm, coil id range 508±30
Capacity: 5T

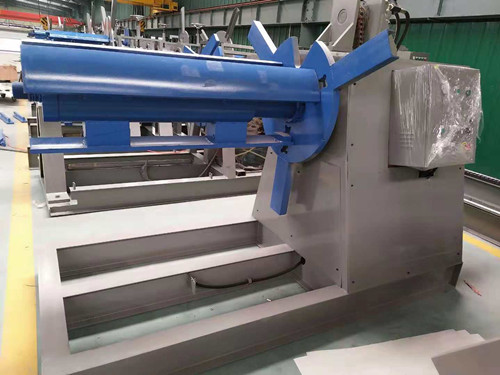

With further hydraulic uncoiler for option

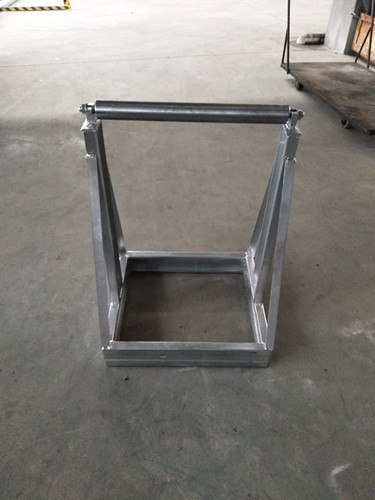

4. Exit Rack
