High speed with good quality
item no.:
YX18-340Payment:
FOB Referenceproduct origin:
ChinaColor:
Glay+Blueshipping port:
Xiamen PortLead Time：
0-60DaysMaterial
Material Thickness: 0.5-0.6mm
Material Width: 500mm
Applicable Material: PPGI, PPGL
Main Technical Parameter
|
Technical Parameter |
Description |
|
Machine Size |
10M*0.8M*1.2M |
|
Material Width |
500mm |
|
Effective Width |
340mm |
|
Forming Station |
20 steps |
|
Motor power |
7.5Kw |
|
Weight |
7000KG |
Machine Parts

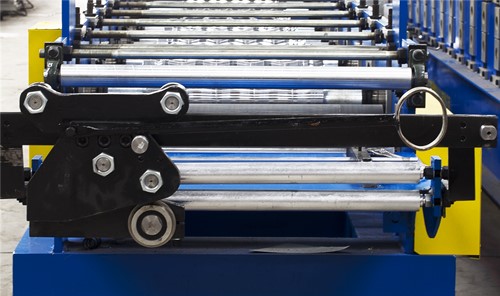

(1) Roof Panel Roll Forming Machine Pre-cutter
With feeding material guide which can avoid wasting materials

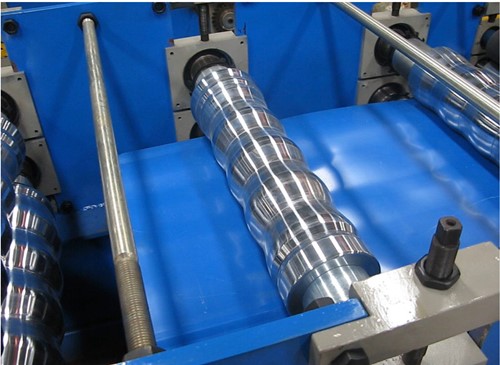

(2) Machine Rollers
Machine rollers are made by 45# steel, CNC lathers
Body frame made from H350 type steel by welding

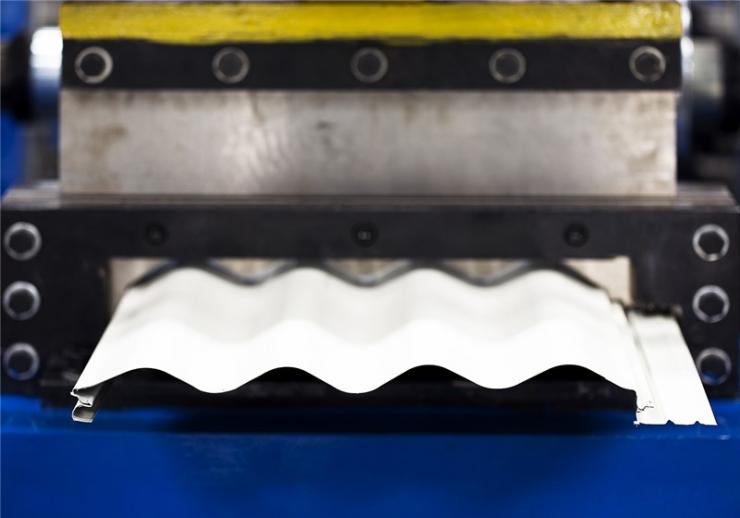

(3) Machine post cutter
Hydraulic post cutter, stop to cut
Hydraulic pressure range: 0-16Mpa
Hydraulic motor: 3.0KW
Cutting tool material: Cr12, heat treatment

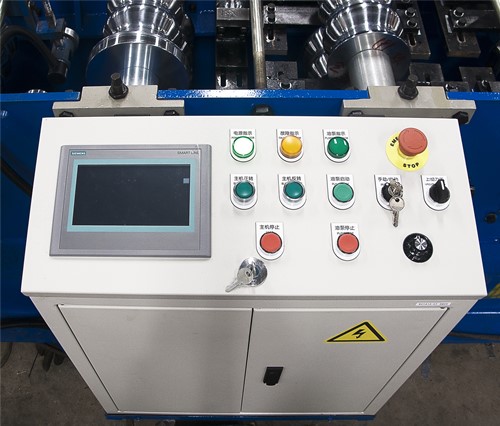

(4) PLC Control System
