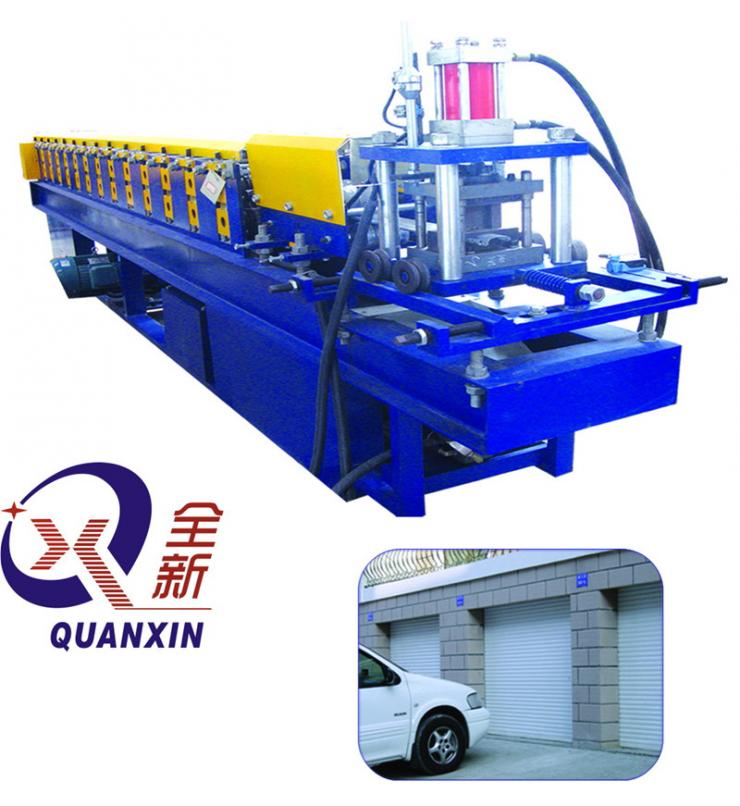

Door Frame Roll Forming Machine

The door which produced by door frame forming machine is used in factory workshop and other shops. It is convince for installation, low-noise and easy maintenance.

  • item no.:

    JM105
  • Payment:

    FOB Reference
  • price range:9300 - 24000/$1
  • product origin:

    China
  • Color:

    Glay White+Blue
  • shipping port:

    Xiamen Port
  • Lead Time:

    45 Days
Product Detail

We offer customized sizes.

It is helpful that if you can send us your drawings.

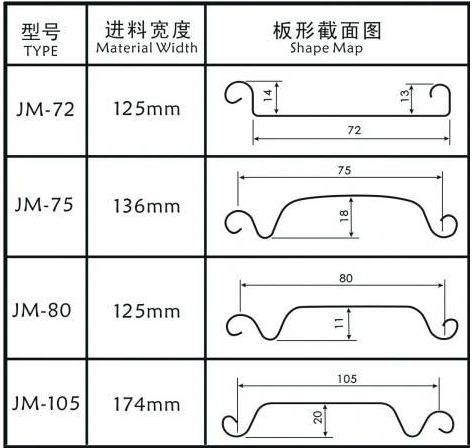

Profile Drawing



Main Technical Parameters:

Technical Parameter

Description

Material Thickness

1.0mm

Material Width

174mm

Effective Width

105mm

Forming Station

14steps

Motor power

4.0Kw

Weight

1500KG



Machine Parts

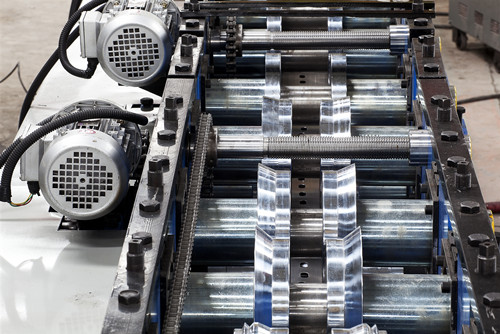

1. Machine Roller

Rollers manufactured from high quality GCR15, CNC lathes, heat treatment.
With black treatment or hard-chrome coating for options
Body frame made from 200#H type steel by welding.

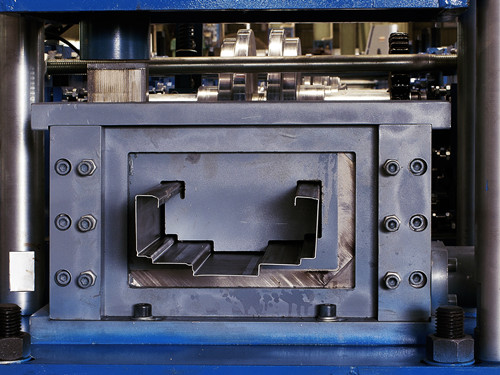

2. Roll Forming Machine post cutter

Made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding
Hydraulic motor: 2.2KW
Hydraulic pressure range: 1-16Mpa

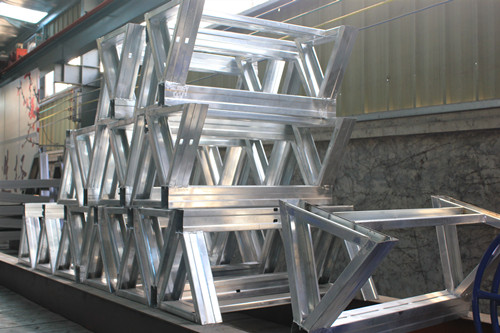

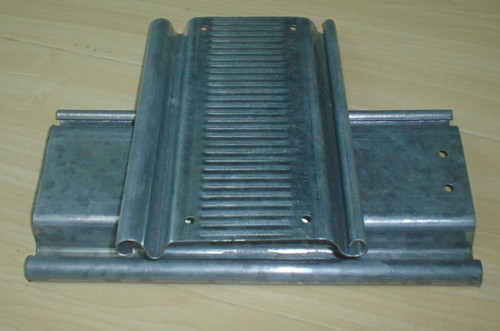

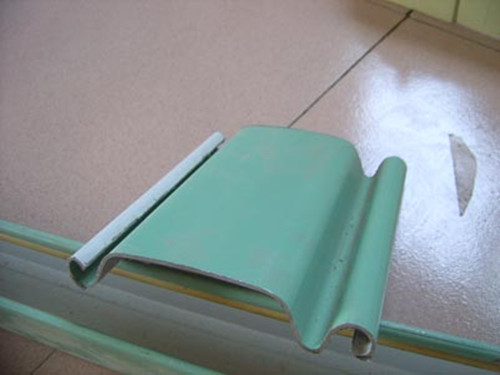

3. Product show

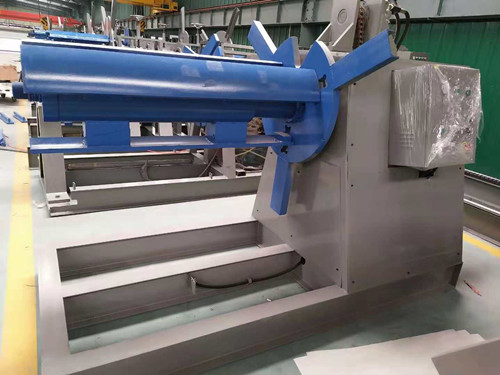

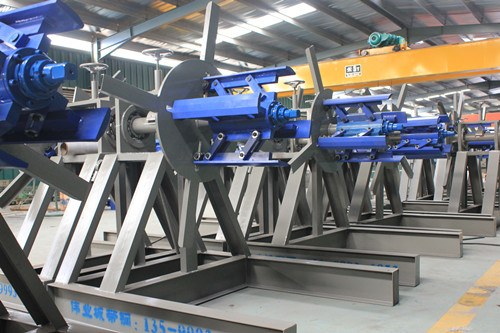

4. Uncoiler

Manual dedoiler: 1 set
Un-powered, manually control steel coil inner bore shrinkage and stop


With hydraulic uncoiler for option


5. Exit rack

Send a Message

If you have any problem when using the website or our products, please write down your comments or suggestions, we will answer your questions as soon as possible!Thank you for your attention!

related products
Door Frame Forming Machine
Door Frame Roll Forming Machine

This door that produced by door frame forming machine is used in factory workshop and other shops. It is convince for installation, low-noise, reliable quality, and easy handling.

Roof Panel Ridge Cap Roll Former
Roof Panel Ridge Cap Roll Forming Machine

Roof panel ridge cap is widely use in the roof panels and accessories section. Find quality metal roof ridge cap roll forming machine, you can connect us.

CNC Bending
CNC Bending Machine

       With more than 20 years experience and professional team, we are the biggest roll forming machine manufacturer in China, and our machines have been exported to more than 50 countries, such as America, Canada, Japan, Australia, India, Philippines, etc.        This CNC bending machine with high accuracy and easy operation is popular in the market.         If you are looking for press brake machine or crimping machine, connect me which will surprise you!

Automatic CZ Purlin Forming Machine
Quick Change CZ Purlin Roll Forming Machine

Quick Change CZ Purlin Roll Forming Machine with Taiwan Quality,China Price can change the type from C to Z in ten minute.

Dual Layer Roll Former

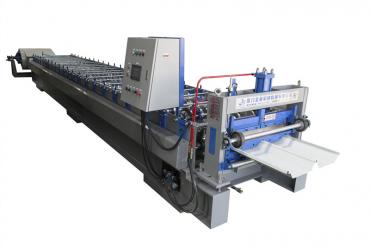

Dual Layer Roof Sheet Roll Forming Machine
