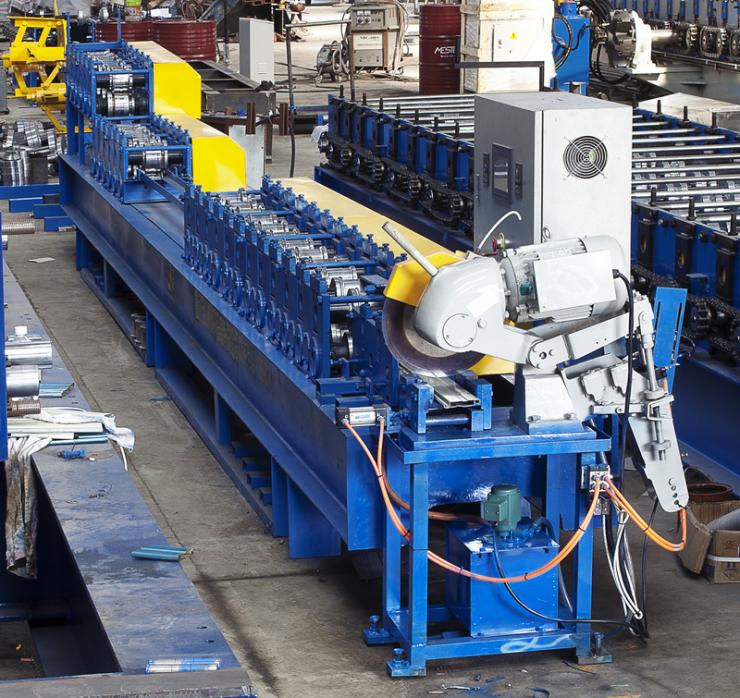

This door that produced by door frame forming machine is used in factory workshop and other shops. It is convince for installation, low-noise, reliable quality, and easy handling.
item no.:
JM14-88Payment:
FOB Referenceproduct origin:
ChinaColor:
Glay White+Blueshipping port:
Xiamen PortLead Time：
45 DaysWe offer customized sizes.
It is helpful that if you can send us your drawings.
Main Technical Parameters:
Technical Parameter
Description
Material Thickness
0.5-1.0mm
Material Width
125mm
Effective Width
88mm
Forming Station
22steps
Weight
4500KG
Machine Parts

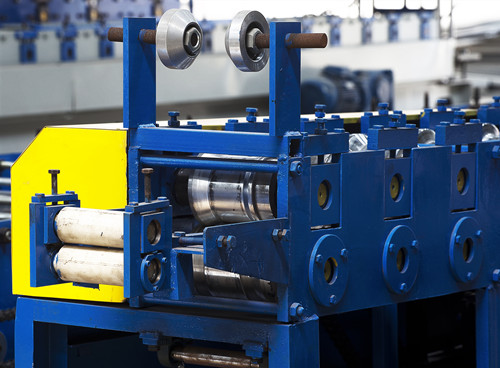

1. Machine Roller
Its rollers are made from high quality 40Cr, CNC lathes, heat treatment.
You can choose black treatment or hard-chrome coating
Body frame made from H350 type steel by welding.

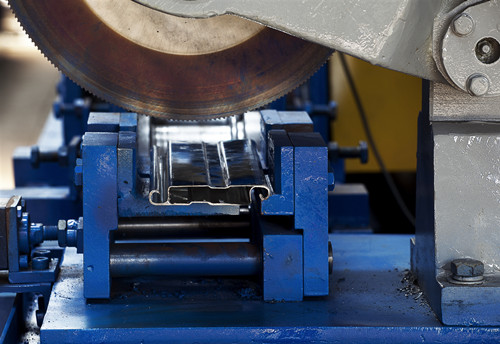

2. Machine post cutter

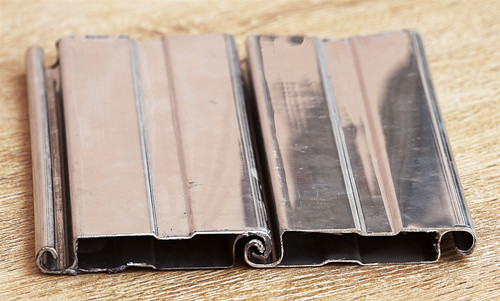

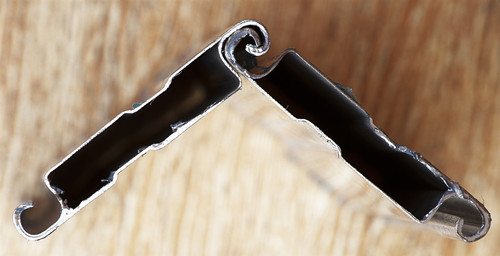

3. Product show
4. Uncoiler
Manual decoiler: 1 set
Un-powered, manually control steel coil inner bore shrinkage and stop
With hydraulic uncoiler for option
5. Exit rack
