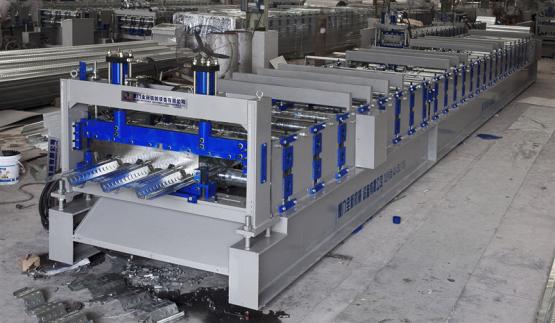

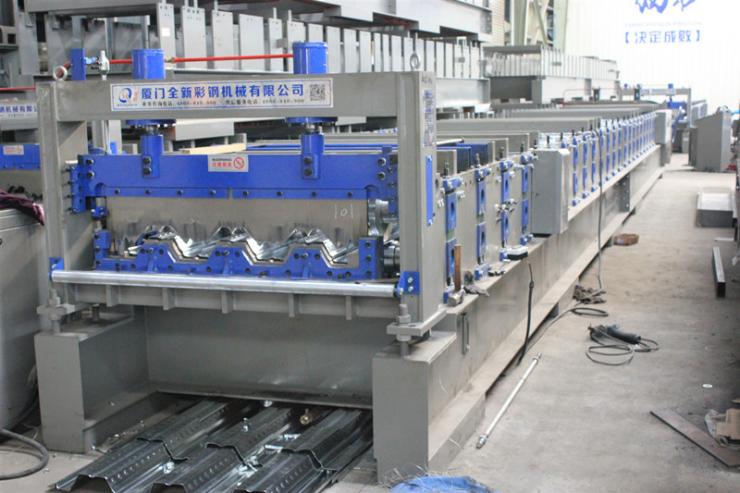

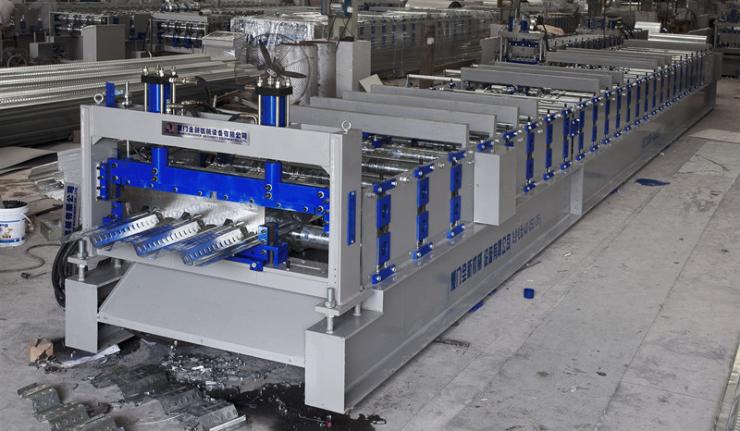

Decking Floor Roll Forming Machine

Metal deck roll forming machine is a modern, pre-eminent solution for concrete floor work. It has reduce the work time and save concrete.

item no.:
YX50-250-750
Payment:
FOB Reference
product origin:
China
Color:
Glay White+Blue
shipping port:
Xiamen Port
Lead Time：
30 Days

Product Detail

Product Description:
1. This machine is easy to manipulate with minimal start-up time
2. It is specially designed to provide superior fastening strength between steel plate and concrete
3. The closed deck sheet is thicker than the ordinary ones, which allows them to be more resistant to harsh conditions
4. Since plates are wholly covered by concrete, they are very resistant to fire

All these information are just for reference. We also offer customized size too.

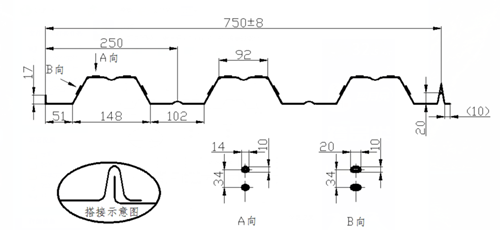

Profile drawing

Main Technical Parameters:

Technical Parameter	Description
Material Thickness	0.8-1.5mm
Material Width	1000mm
Effective Width	750mm
Forming Station	23steps
Motor power	37KW
Weight	13000KG

Machine Parts

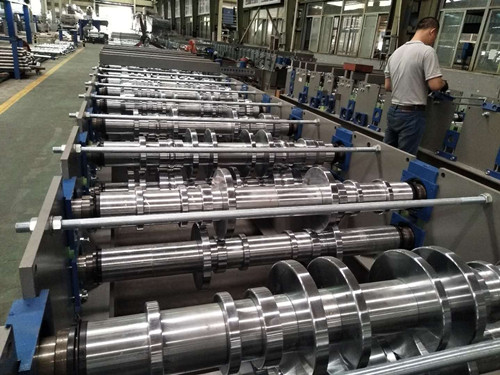

1. Floor decking machine rollers

Every decking machine has feeding material guide,

Its body frame are made from H450 type steel by welding;

The material of the roller is 45# steel with CNC lathes,hard Chrome Coated

Shafts Diameter=ф90mm,precision machined

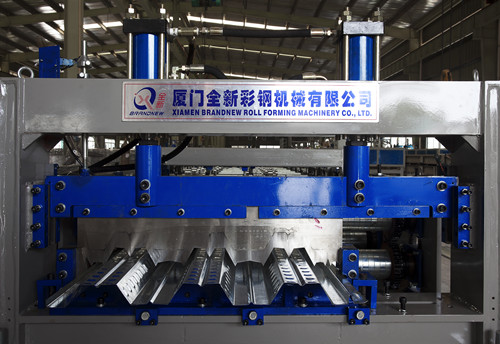

2. Floor decking machine post cutter

Hydraulic pressure range: 0-16Mpa
Hydraulic Motor：4.0KW
Cutting tool material: Cr12, Heat treatment

We also offer motor post cutter for your option

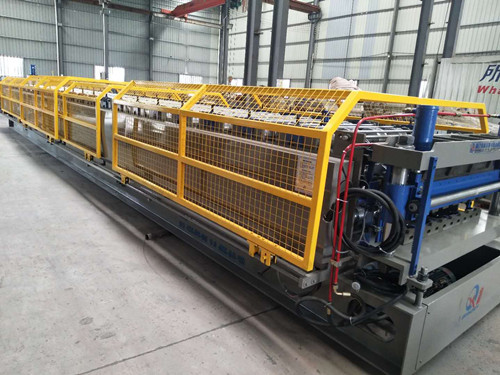

3.Floor decking machine protection cover ( Its for your option)

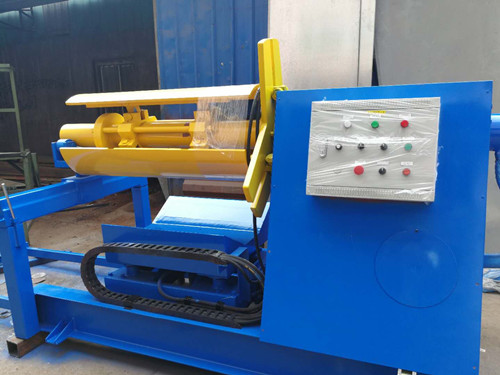

4. Uncoiler

With hydraulic uncoiler for option
