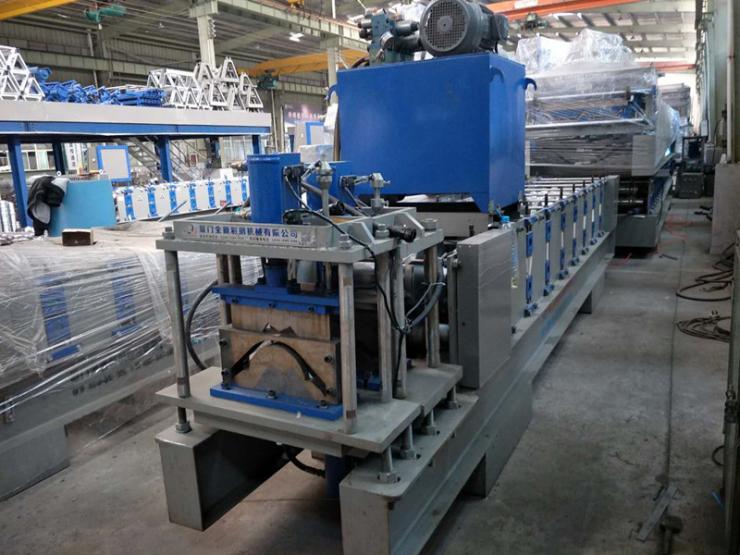

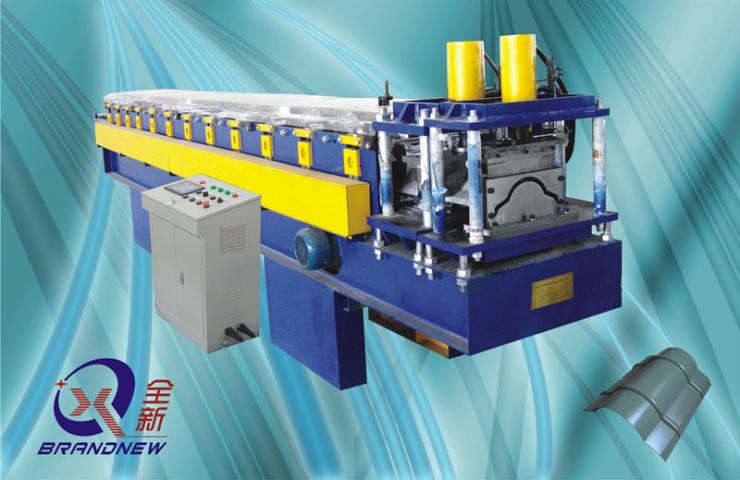

Ridge cap is widely use in roof panels and its accessories section. If you are looking for high quality metal roof ridge cap forming machine, don't hesitate to contact us.
item no.:
YX120-345Payment:
FOB inferenceproduct origin:
ChinaColor:
Glay+Blueshipping port:
Xiamen PortLead Time：
0-60DaysHigh Quality Ridge Cap Roll Forming Machine with best after-sales quality

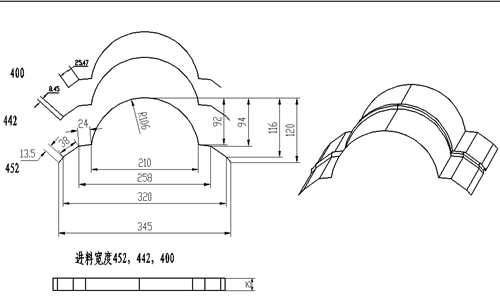

Profile Drawing
Main Technical Parameters
|
Technical Parameter |
Description |
|
Material Thickness |
0.4-0.6mm |
|
Material Width |
400/442/452mm |
|
Effective Width |
258/320/345mm |
|
Forming Station |
10 steps |
|
Motor power |
11.0Kw |
|
Shaft Diameter |
65mm |
Color-coated sheet with yield strenght of 235Mpa
Machine Components

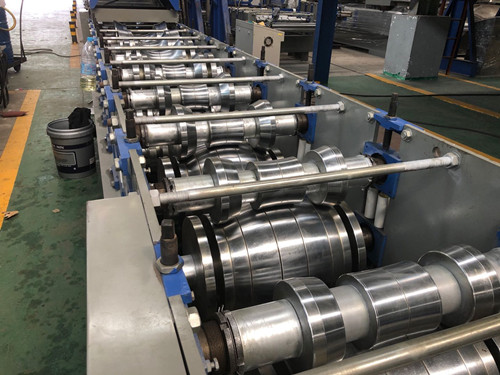

1. Cold Rolling Mill
Body frame made by 14mm H300 steel, with material guide;
Roller material is 45# steel with CNC lathes;
Solid shaft diameter is 65mm, precision;
Motor driving, motor power=11KW, 10 steps to form;
2. Hydraulic cutting device
Post cut, stop to cut
Hydraulic pressure range: 0-16Mpa
Hydraulic motor: 5.5KW
Cutting tool material: Cr12, heat treatment

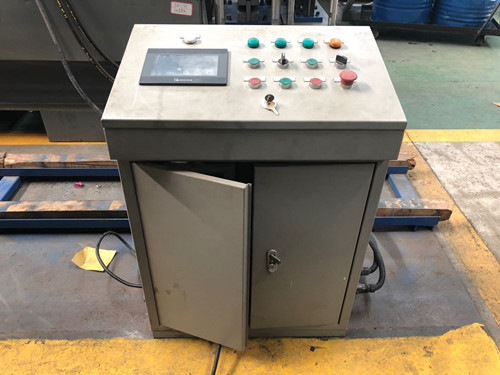

3. PLC control system
Control the quantity and cutting length automatically
Input the date (production batch, pcs, length, etc) on the touch screen, and it can finish the production automatically.
Combined with PLC, Inverter, Touch Screen, Encoder, etc.
