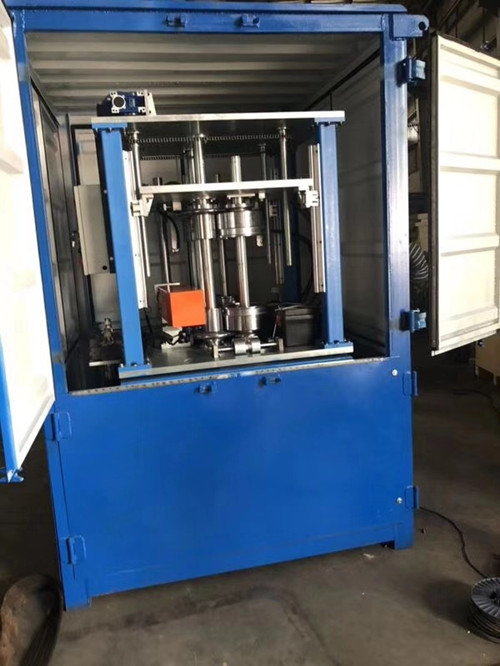

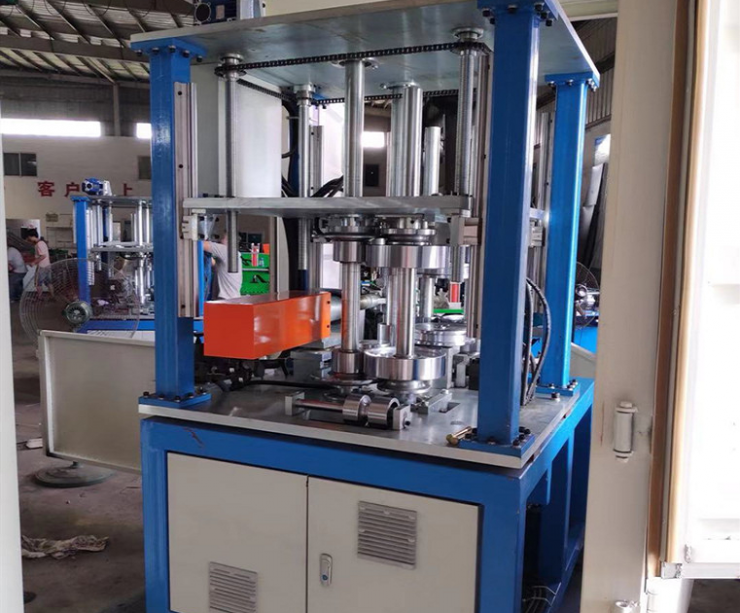

Standing Beam Roof Curvivng Machine use computer control system, without manual changed.
item no.:
YX65-400/430Payment:
FOB Referenceproduct origin:
ChinaColor:
Glay + Blueshipping port:
Xiamen PortLead Time：
0-60DaysMaterial:
Material thickness:0.7-1.2mm
Applicable material:Al-Mg-Mn alloy plate
Machine Speciafication
|
Main Specification |
Applicable Working Range |
||
|
Motor |
4KW |
Minimum Radius of Forward |
1.0mm material can be 1.5M |
|
Hydraulic Motor for Cutting |
2.2KW |
Maximum Radius of Backward |
5M |
|
Forming Station |
3 |
Sector Minimum Width |
230mm |
|
Shafts |
CR12 with hard Chrome Coated, heat treatment |
Sector Maximum Width |
600mm |
|
Control System |
PLC |
Sector Minimum Radius |
3M |
|
Forming Speed |
About 12m/min |
|
|
|
Machine Size |
1.3M * 1.3M * 1.8M |
|
|
