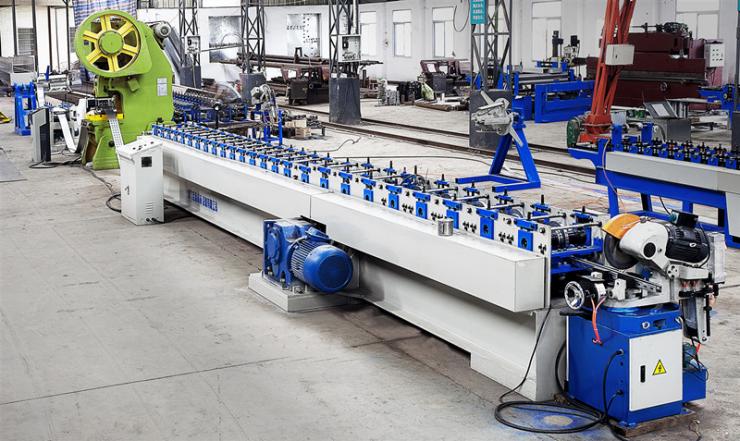

Strut Channel Roll Forming Machine

With professional team and more than 20 years experience, our machines have been exported to more than 50 countries, such as America, Canada, Australia, Japan, India, Philippines, etc.

Our solar channel roll forming machine with high quality and high accuracy is your best choice!

  • item no.:

    YX41-41
  • Payment:

    FOB Reference
  • market price:

    $54780
  • product origin:

    China
  • Color:

    Glay White+Blue
  • shipping port:

    Xiamen Port
  • Lead Time:

    45 Days
Product Detail

To be the biggest roll forming machine manufacturer in China

All we do is to surpass competitors with you together

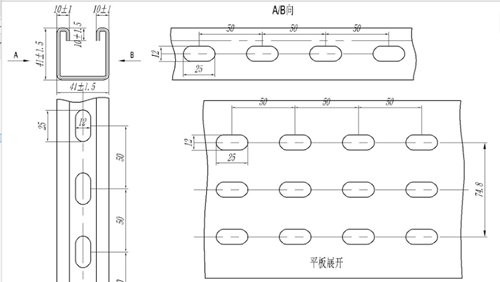

Product Drawing


Details

Material Thickness: 2.0-2.5mm

Feeding Material Width: 141mm

Applicable Material: PPGI, GI, PPGL

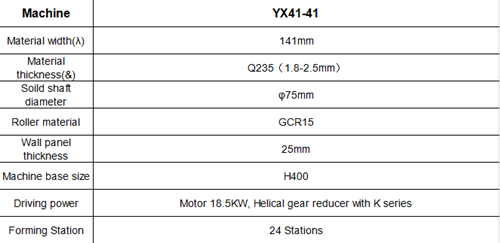

Machine Specification

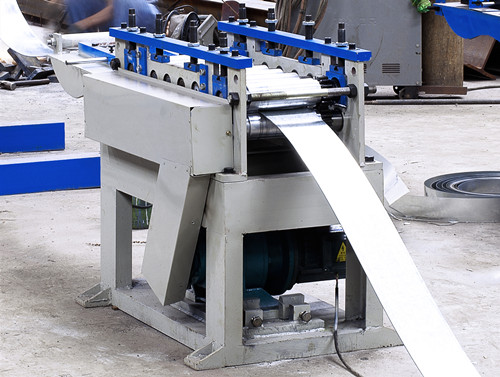

(1) Cold Rolling Mill


(2) Servo Feeding Device

Serve motoer: 2.2KW

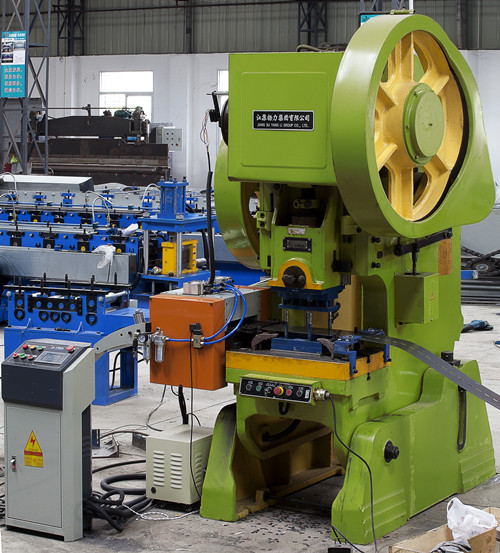

(3) Punching Device

With 63T punching press



(4) Hydraulic Cutting Device

Hydraulic cutting device with three blades
Hydraulic pressure range: 0-16Mpa
Hydraulic Motor:5.5KW
Cutting tool material: Cr12, Heat treatment
